Apparent Wind vs. True Wind
Sailing is an activity where understanding wind speed and direction is critical. Two types of wind significantly impact your sailing performance: apparent wind and true wind.
Understanding how these two winds affect your boat’s performance is essential to stay safe and to maximize your sailing experience. For example, failing to recognize the differences between apparent and true wind could lead to slower speeds or excessive heeling.
Simply put, apparent wind is the wind you feel, while true wind is the speed and direction of the wind.
This article will explore the distinctions between apparent and true wind and why it matters for sailing success.
What is Apparent Wind?
Apparent wind combines two distinct forces – true wind and boat speed. True wind is the velocity of the air around you unaffected by your boat’s movement, while boat speed is how fast your craft is traveling through the water. When these two intermingle, they form a more powerful phenomenon called apparent wind.
The direction of apparent wind varies based on your boat’s direction. If you’re riding into the true wind (i.e., head-on), its strength matches that of both true and boat speed combined. On the other hand, if you’re going with or across the true wind, it will be weaker than what was felt initially when stationary – though still strong enough to thrust your sailboat forward.
For example, imagine you were moving 10 knots with a 5-knot breeze from behind; in that case, your apparent wind would move to 15 knots. Contrarily, if you were advancing at 10 knots with a 5-knot headwind, your apparent wind would be 5 knots instead.
Why Does Apparent Wind Matter?
Awareness of how apparent wind works can be a huge asset to any sailing experience. For example, let’s say you’re cruising with or across true steady winds, and they suddenly increase in strength – this could indicate a squall or storm system is imminent, giving boaters time to prepare for safety before it strikes.
Understanding how true wind interacts with boat speed can help sailors adjust their sail trim for optimum performance. This means being aware of the angle between true and apparent winds can also inform decisions about which sail trim is most suitable to get the most from upwind or downwind sailing.
Understanding the mechanics of apparent wind allows boaters to make better-informed decisions while on the water. Knowing your boat speed in different conditions will allow you to pick which direction to take while recognizing when to turn around so as not to miss any opportunities. With this understanding of apparent winds, even novice sailors have a chance at successful sailing!
How is Apparent Wind Speed Measured?
Measuring the apparent wind can be done using specific tools and methods. A wind instrument mounted on the sailboat is a commonplace option, providing readings for both true wind speed/direction and boat speed/direction. Hand-held anemometers/wind gauges usually include functions for calculating apparent wind too, requiring you to take readings of the true wind by pointing the tool into it first; subsequently, point it towards your sailing direction before taking a reading of its velocity – then using the inbuilt function to determine your apparent wind.
Alternatively, there are phone apps that sailors can use to measure and assess their apparent winds. These employ GPS and compasses within phones to work out your boat’s speed and direction while delivering real-time analyses of its implied apparent winds.
Factors that Affect Apparent Wind
Multiple factors influence the apparent wind experienced by sailors on a sailboat. The most important ones include the boat’s speed and direction, the true wind speed and direction, as well as the shape and size of the sails.
When it comes to the influence of the boat’s speed and direction on apparent wind, sailing in line with the true wind results in a much weaker apparent wind compared to sailing at an angle perpendicular to it.
The true wind speed is also critical, as an increase in strength leads to higher values for the apparent wind. Furthermore, its direction dictates that of the resulting apparent wind.
Finally, how well your sails are trimmed can also make all the difference. Faulty trimming creates too much drag and slows down your sailboat, resulting in a reduced apparent wind velocity, while tight trimming increases lift and boosts your boat’s speed along with the apparent wind.
Apparent Wind Angle and Sail Trim
The apparent wind angle is essential for determining the optimal sail trim. As the angle between the boat’s heading and the apparent wind direction, this measurement plays a critical role in achieving maximum speed with minimal heeling.
The correct sail trim depends on multiple variables, such as wind strength and direction, not the boat’s speed and direction. When sailing upwind, sailors must adjust their sails to create lift while maintaining a steady angle of attack. This includes tightening the sails to form an aerodynamic shape that captures maximum wind power.
When sailing downwind, adjusting the sail trim means loosening them to increase their surface area and harvesting as much wind as possible. Again, it’s crucial to match both your sail and apparent wind angles when adjusting.
Examples of How Apparent Wind Affects Sailing
Apparent wind plays a significant role when it comes to sailing performance, and there are plenty of examples that demonstrate how:
- When sailing upwind, the angle between the boat’s heading and the apparent wind is essential for ascertaining the optimum sail trim. This includes adjusting your sails to generate lift while managing a stable course and varies depending on wind speed, boat speed, and direction.
- Tacking and jibing necessitate considering the apparent wind angle shift due to turning your boat against or away from the wind, respectively.
- Reaching involves adjusting your sails to get maximum surface area and capture as much available wind as possible while preserving stability – all while mindful of changes in apparent wind angle caused by other factors such as strength and direction of the actual wind or your boat’s speed and direction.
- Similarly, downwind sailing may require tweaking your sails to increase their ability to catch air current and maintain balance which again depends heavily on variables such as apparent wind angle, among many others.
What is True Wind?
Understanding the direction and speed of true wind is essential for sailors. True wind denotes the wind speed and direction you would experience if standing still on land instead of moving relative to the water.
This is important because it provides a reference point for gauging the apparent wind, which is affected by the boat’s motion. True wind direction can be indicated on a compass in degrees, while its speed is typically expressed in knots or miles per hour.
How is True Wind Measured?

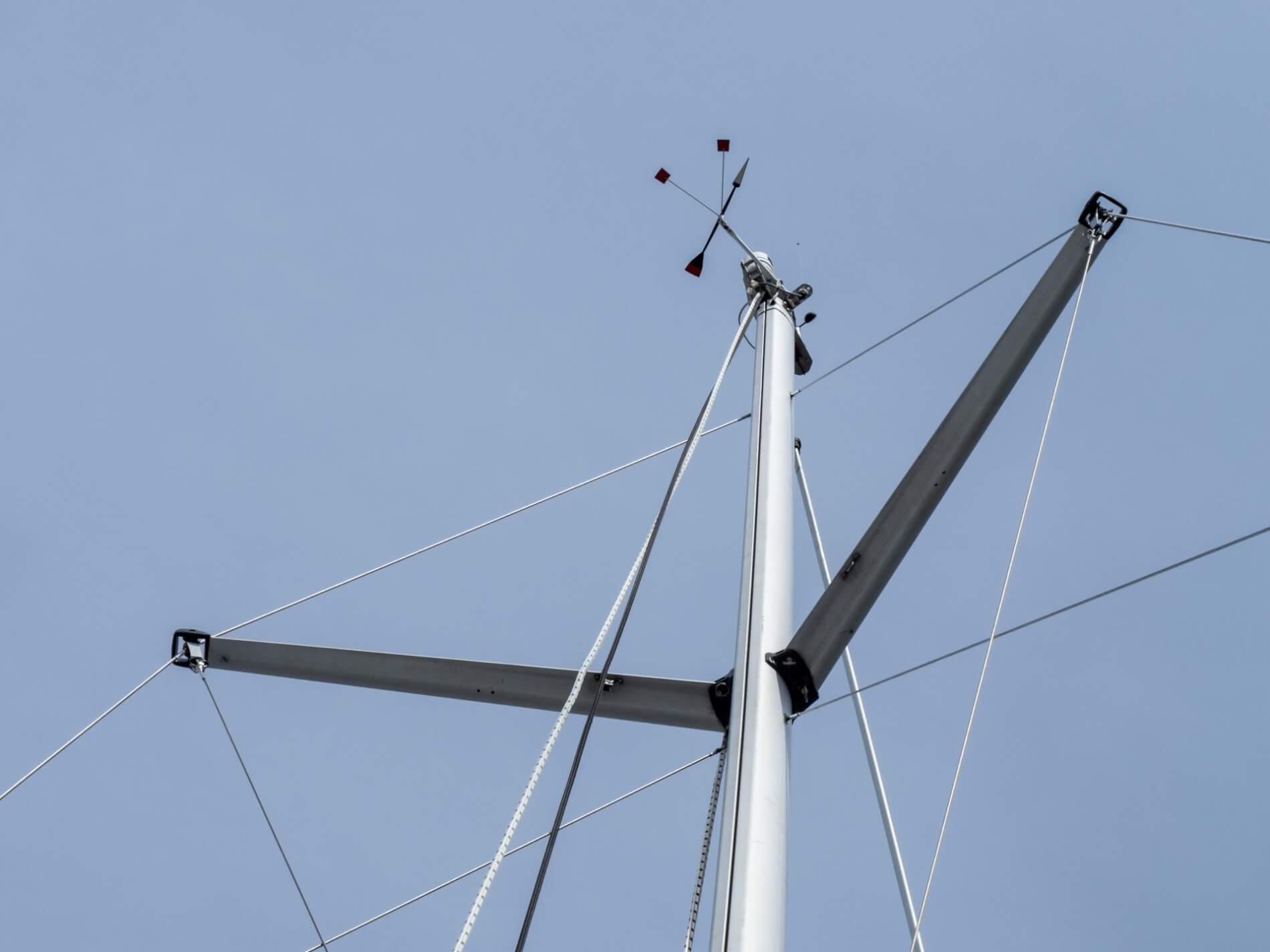

To measure the true wind, sailors typically use a wind instrument attached to the mast or rigging of their sailboat. This can be a wind vane or an anemometer, with the latter providing more accurate readings. An anemometer measures wind speed and direction, while a weather vane only measures direction.
Calculating speed involves using a speed formula (Speed = Distance / Time) and a direction formula (Direction = Heading + or – Apparent Wind Direction).
The data from the instrumentation is often displayed on a digital readout for easy viewing. Additionally, sailors can estimate true wind by observing objects on the water, such as waves or foam, feeling the wind on their faces, or holding up fabric to gauge its direction and speed.
Factors that Affect True Wind
True wind is the actual speed and direction of the wind independent of the sailboat’s movement. However, several factors can affect its speed and direction, making it more variable. These factors include:
- Atmospheric pressure – high-pressure systems often bring calmer weather, while low-pressure systems bring stronger winds;
- Temperature – differences between air temperature over land and water can create thermal effects that draw in cooler air from the sea;
- Terrain – mountains, valleys, and other landforms can cause the wind to speed up, slow down or change direction;
- Obstructions – man-made structures such as buildings, trees, and other boats can cause turbulence and alter the true wind;
- Coriolis effect – due to the earth’s rotation, this phenomenon causes the wind to veer right in the Northern Hemisphere and left in the Southern Hemisphere.
Examples of How True Wind Affects Sailing
True wind is an essential factor in determining the speed and direction of a sailboat. Here are some examples of how true wind affects sailing:
- Sailing upwind: When sailing upwind, the true wind direction must be considered to determine the best angle of attack. Sailors also must adjust sails and the boat’s heading to maximize lift and minimize drag, considering the true wind speed.
- Tacking and jibing: When tacking or jibing, sailors need to monitor the true wind direction, which can shift significantly during these maneuvers.
- Reaching: True wind direction and speed impact sailors’ decisions on optimal sail trim when sailing on a reach. The sails must be adjusted to maximize their surface area for maximum wind capture while maintaining balance and stability.
- Downwind sailing: When sailing downwind, true wind angle and speed significantly impact boat speed – adjusting sails correctly is critical for maximizing power from the wind while keeping balance.
Why it is essential to understand the differences.
Having a good understanding of the differences between apparent wind and true wind is essential for successful sailing. Here are some reasons why:
- Sail trim: Adjusting sails and the boat’s heading should be done with an awareness of both apparent and true wind to maximize lift and minimize drag.
- Steering: The true wind direction determines the optimal steering angle – not knowing these differences could cause the boat to lose momentum.
- Maneuvering: When tacking or jibing, sailors must understand how to use the true wind properly to avoid losing speed or risk capsizing.
- Safety: Knowing both apparent and true wind can help sailors avoid hazards, navigate safely, and protect themselves from unexpected shifts in the wind direction.
- Performance: Optimizing boat performance on the water means analyzing both types of winds for strategic decisions about sail trim, steering, speed, and efficiency.
Apparent and True Wind across The Points of Sail
Sailing effectively and efficiently requires sailors to use both true and apparent wind. Here are some tips on how to use them across different points of sail:
- Upwind sailing: Sailors must adjust their sail trim based on the true wind direction and the apparent wind angle for maximum lift while minimizing drag. Keeping a close-hauled course and responding to changes in the wind’s direction is critical.
- Reaching: Adjusting both true and apparent winds helps maintain an efficient sail shape and angle while steering the boat to stay on a consistent apparent wind angle trajectory for maximum speed.
- Downwind sailing: Analyzing the true wind assists in choosing the best downwind course while adjusting sails based on the apparent wind angle helps optimize speed and maintain good course heading.
- Beating: Knowing both types of winds helps sailors optimize their speed and efficiency by making tactical decisions about sail trim and steering.
- Tacking and jibing: Using both true and apparent winds enables sailors to make the right decisions about sail trim and steering for the effective execution of these maneuvers.
Understanding and utilizing the differences between true and apparent wind is essential for any sailor wanting to perform like a pro. Apparent wind determines your boat’s speed and direction, while true wind gives you information about your sailing conditions.
Factors such as boat speed, wind speed, sail trim, and local topography can influence how the two types of winds interact. By analyzing both types of wind and adjusting sail trim and steering tactics accordingly, sailors can optimize their boat’s performance and remain safe in different sailing conditions.
With this awareness, next time you’re out on the water, take a moment to consider if what you feel is apparent or true wind – this knowledge could help you make informed decisions about course strategy and sail adjustments that’ll get you back to land with ease.
Apparent Wind vs. True Wind FAQs
Q: What is the difference between apparent wind and true wind?
A: Apparent wind is the wind a person feels on a moving boat, considering the boat’s speed and direction. Conversely, true wind is the actual wind direction and speed relative to the earth’s surface.
Q: Why is it important to understand the difference between apparent wind and true wind in sailing?
A: Knowing the difference between apparent and true winds is vital for sailors, enabling them to sail effectively and efficiently in varying conditions. Apparent winds help adjust sail trim and steering, while understanding true winds helps make strategic decisions about course heading and sail adjustments.
Q: How do you measure apparent wind?
A: To measure apparent wind, sailors need to take into consideration factors like boat speed, wind speed, and direction, as well as sail trim. This can be done using instruments such as an anemometer or by observing luffing of sails.
Q: How do you measure true wind?
A: Measuring true winds require considering air pressure, temperature, and local topography, among other things. Wind vane, compass, or GPS are some tools sailors use to measure true winds.
Q: How do sailors use true and apparent wind to optimize performance?
A: Sailors use both types of winds to adjust sail trims, steering tactics, boat speed & efficiency and make informed decisions regarding course strategy & sail adjustments.
Q: How do you use wind instruments while sailing?
A: Wind instruments such as anemometers or a vane are used by sailors to measure either apparent or true winds, which then help them adjust their sails & steering tactics accordingly for optimal performance.
Q: How do you determine wind shifts & gusts while sailing?
A: By observing changes in sail trim & boat speed, along with measuring the direction & speed of winds through instruments like compasses or GPS systems, are some methods used by sailors for determining any changes in the speeds & directions of winds like shifts & gusts.
Q: How do you use true & apparent winds across different points of sail?
A: Understanding both kinds of winds allows sailors to make necessary adjustments when it comes to their trimming techniques & steering tactics depending on these variables, which would further help optimize their boats’ performances across various points of sail.
