Boom Vang Sailing Fundamentals
The boom vang is an essential piece of equipment that plays a key role in achieving optimal performance. This often overlooked component significantly impacts sail shape and handling, making it crucial to master. In this blog, we will explore the ins and outs of the boom vangs. We will examine the components, different types, and their functions and use.
What is a Boom Vang?
A boom vang, also known as a kicking strap or vang, is a device used on a sailboat to control the angle of the boom relative to the mast, thereby affecting the shape of the mainsail. It plays a crucial role in sail trim, impacting the boat’s overall performance and handling.

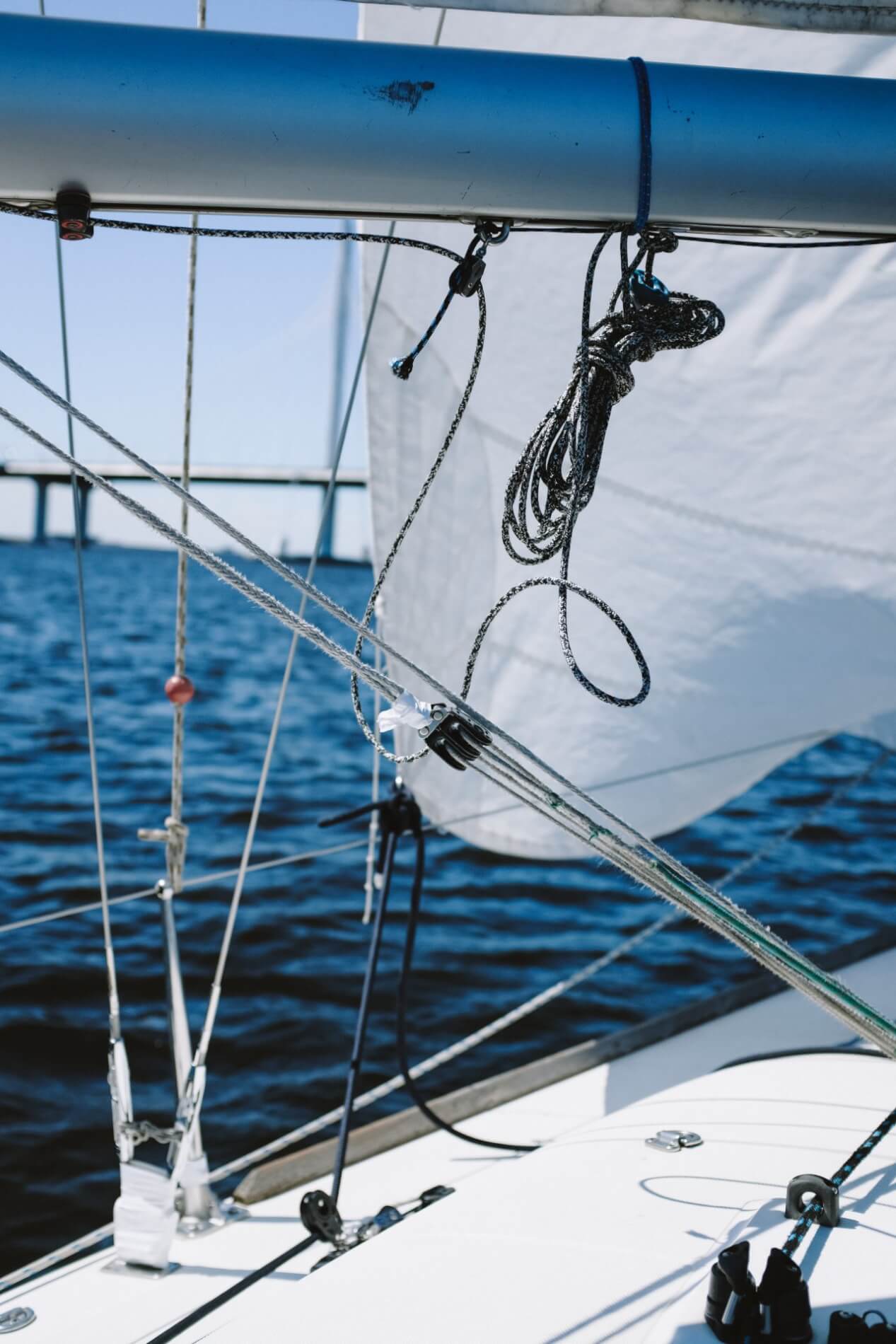

Before diving into how its works, let’s first look at its basic components. A typical boom vang consists of a line or tackle system that connects the boom to the base of the mast. This system often includes blocks, cleats, shackles, and other hardware, which can be made from various materials such as aluminum or stainless steel. The choice of materials and components often depends on factors like the size of the boat, weather conditions, and personal preferences.
Function and Purpose
Their primary function is to control the shape of the mainsail, particularly in terms of leech tension, twist, and flattening. By adjusting the vang, you can manipulate the vertical and horizontal position of the boom, impacting performance. This can help reduce twist in the mainsail and prevent accidental gybes, which can be dangerous in certain conditions.
Different Types of Vangs
Soft or rope vang
The soft or rope vang is the simplest and most traditional type. It consists of a line or rope running through a series of blocks, forming a purchase system to provide mechanical advantage. Soft ones are affordable, lightweight, and relatively easy to install and maintain. However, they lack the support and precision that more advanced systems offer, which can be a drawback for those seeking optimal shape control.
Rigid: rod, spring-loaded, hydraulic piston
Rigid provide more support and control than soft, allowing for better sail management. Several types include rod, spring-loaded, and hydraulic piston vangs. Rods are simple and durable, using a solid rod to connect the mast and boom.
Spring-loaded incorporate a spring mechanism to provide additional support and maintain boom height, while hydraulic pistons offer precise control and adjustment using hydraulics. Rigid vangs are generally more expensive and complex, but their benefits often outweigh the additional costs.
GNAV (topping lift replacement)
The GNAV is a relatively new type that replaces the traditional topping lift, a line that supports the boom when the mainsail is lowered. This system uses a rigid rod or strut that attaches to the top of the boom and the mast, providing support and control similar to a rigid vang. GNAV systems are lightweight, low-maintenance, and can improve sail shape but may require modifications to your rigging to accommodate the new setup.
Choosing the right type for your boat
When selecting a boom vang, consider your boat size and budget. Casual cruisers may find a soft vang suitable for their needs, while racers or those with larger boats may benefit from rigid’ enhanced control and support. Additionally, those seeking a low-maintenance option with a clean appearance may prefer the GNAV system.
Pros and cons of each type
- Soft are affordable and easy to maintain but offer less control and support than rigid.
- Rigid provide increased control and performance but may be more expensive and complex to install.
- GNAV systems offer a sleek, low-maintenance alternative but may necessitate rigging modifications.
Installation and Setup
Measuring and determining the proper size
Before selecting, you will need to determine the appropriate size for your sailboat. Measure the distance between the base of the mast and the boom, where the vang will be attached. Consider the size and weight of your boat and your preferences and conditions when selecting the system.
1. Attaching the vang to the mast and boom
Start by attaching it to the mast and boom using the appropriate hardware, such as shackles or bolts. Ensure the attachment points are strong and secure, as the vang will be subject to significant forces.
2. Rigging the tackle system
Next, rig the tackle system using blocks, purchase systems, and cleats, following the manufacturer’s instructions and recommendations. Ensure that the line or rope used in the system is of the proper size and strength for your boat and weather conditions. When rigging a soft vang, route the line through the blocks to create the desired purchase system. For rigid vangs and GNAV systems, follow the manufacturer’s guidelines for connecting the components.
Troubleshooting common installation issues
- Difficulty attaching the vang to the mast or boom: Ensure that you use the correct hardware and attachment points, and consider strengthening the attachment points if necessary.
- Difficulty routing the line or rigging the tackle system: Double-check the manufacturer’s instructions and ensure the blocks and purchase systems are compatible with your boat and vang system.
- Inadequate control: Adjust the purchase system or vang.
Adjusting the Vang
- When heading upwind, the vang helps control the leech tension and twist in the mainsail. Adjusting allows you to find the right balance between a tight leech for more power and a loose leech for less heel and weather helm. This balance is crucial for optimal pointing ability and speed.
- A well-tuned vang can significantly improve your upwind pointing ability and speed. It allows you to maintain a steady course and maximize efficiency even in changing conditions.
- While heading downwind, the boom vang helps control the twist and shape of the mainsail by exerting a downward force on the boom. This prevents the boom from lifting and the sail from twisting, ensuring a more efficient and stable shape. Adjust the vang for wind conditions.
- One of the key safety benefits of a properly adjusted vang is its ability to prevent accidental gybes. Maintaining tension on the boom helps keep it in place and reduces the risk of an unexpected and potentially dangerous gybe.
Sail trim adjustments
- Keep an eye on your sail shape and performance to identify any signs of poor trim. These may include excessive heel, weather helm, difficulty pointing, or sluggish speed.
- Make small adjustments to fine-tune your vang. Be patient and allow time for the boat to react to each adjustment before making further changes. Remember that optimal settings vary with different wind conditions and angles, so be prepared to adjust as needed.
Common mistakes and how to avoid them
- Over-tightening the in light winds can flatten the sail too much and reduce power.
- Neglecting to ease the vang when bearing away can cause excessive heel and reduce control.
- Failing to adjust the tension as conditions change leads to suboptimal performance.
Maintenance and Safety Considerations
Regular inspection and maintenance
- Checking for wear and tear: Periodically inspect for signs of wear and tear, such as damage or corrosion on aluminum or stainless steel components, frayed lines, or worn mechanical parts. Address any issues promptly to prevent potential failures or accidents.
- Lubricating moving parts: Keep moving parts, such as blocks and shackles, lubricated and clean to ensure smooth operation and reduce the risk of jamming or failure. Follow the manufacturer’s recommendations for lubrication and cleaning products.
- Replacing worn components: Replace any worn or damaged components as needed to maintain the integrity and safety of your system. Consult the manufacturer’s guidelines or seek advice from experienced sailors to ensure proper replacement and installation.
- When in strong winds, be cautious when adjusting. Over-tightening the vang can cause excessive force on the boom and mast, potentially leading to equipment failure. Be prepared to ease if the wind strength increases suddenly.
- Ensure the boom is securely attached to the mast and vang, and double-check all connections before departing. This will minimize the risk of accidents caused by a loose or detached boom.
- Be aware of the hazards of a failure, such as a sudden gybe or loss of control. Regular inspection and maintenance, combined with proper usage, can help reduce the risk of equipment failure.
Emergency procedures for equipment failure
In the event of a boom vang failure, remain calm and follow these emergency procedures:
- Secure the boom using the mainsheet or an alternative method to prevent it from swinging uncontrollably.
- Assess the extent of the damage and determine if it is safe to continue or if immediate repairs are needed.
- If necessary, lower the mainsail and return to a safe location for repairs.
1. Shaping for different wind conditions
Precise shaping is crucial for maximizing speed and performance in racing scenarios. Adjusting the boom vang according to wind conditions allows you to harness the power of the wind more effectively. Experiment with different settings to find the ideal balance between power and control.
2. Maximizing speed and pointing ability
A well-adjusted boom vang can significantly improve your speed and pointing ability. By controlling the leech tension and twist, the vang enables you to maintain an efficient and stable sail shape, even in gusty or shifting winds. Monitor your boat’s performance and make small adjustments to the vang as needed during the race to optimize speed and pointing.
Offshore and heavy weather
When in challenging conditions, the boom vang can play a critical role in maintaining sail shape and protecting your rig. Hydraulic and spring-loaded vangs are particularly useful in these situations, as they provide precise control and support to help manage the forces exerted. Using the boom vang can help prevent excessive wear and tear and minimize the risk of equipment failure or accidents.
Understanding and mastering the boom vang is crucial for improving their boat’s performance and handling. With the right boom vang setup, you can optimize sail shape, maintain balance, and enhance safety, especially in challenging conditions.
The primary function of a boom vang is to control the shape of the mainsail by adjusting the angle of the boom relative to the mast. It impacts leech tension, twist, and flattening, affecting the overall performance and handling of the boat.
The main types of boom vangs are soft or rope, rigid vangs (rod, spring-loaded, hydraulic piston), and GNAV systems.
Consider your boat’s size, budget, and intended use. Casual cruisers may prefer a soft vang, while racers or those with larger boats may benefit from the enhanced control offered by rigid vangs. GNAV systems are a low-maintenance alternative that may require rigging modifications.
Start by attaching the boom vang to the mast and boom using the appropriate hardware, then rig the tackle system according to the manufacturer’s instructions. Adjust the boom vang for optimal sail shape and performance while sailing upwind and downwind.
